The STIP Manager application provides several standard pie charts which can be accessed and generated through the Reports menu. There are five pie charts stored in this interface: Federal Funding Sources, State Funding Sources, Funding by Agency, Funding by Program, and Funding by Investment Type.

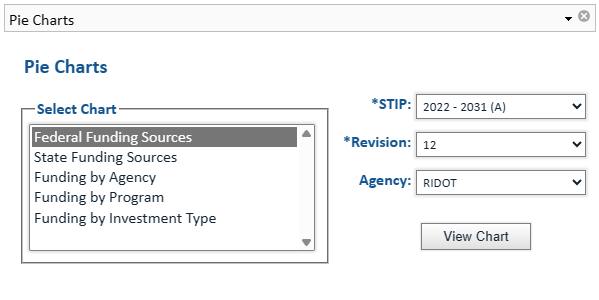

If the Pie Charts is selected in the Reports list, the above interface will open, allowing the user to select the appropriate chart along with any additional filters to be applied. The user will be required to select a STIP and Revision No. before viewing the chart. While the full ten years of the STIP window will be shown in the selected STIP title, all pie charts will only report out the first four, fiscally constrained total values. For most of the charts, users will also have the option to select an Agency from a dropdown list of all Agencies. The only pie chart type that will not have an "Agency" picklist will be Funding by Agency; this chart will have a "Fund Type" field instead, allowing the user to select All, State, Federal, or Other.

Once a pie chart is selected and its three picklists have values, the "View Chart" button can be selected. This will open a pop-up containing a pie chart, Total Amount value, and Print button.

The pie chart will appear slightly different for each listed type and will relay specific information. The sub-header of all charts will include the first four years of the STIP window and the Agency or Funding Type selected. Each pie chart type is described below.
